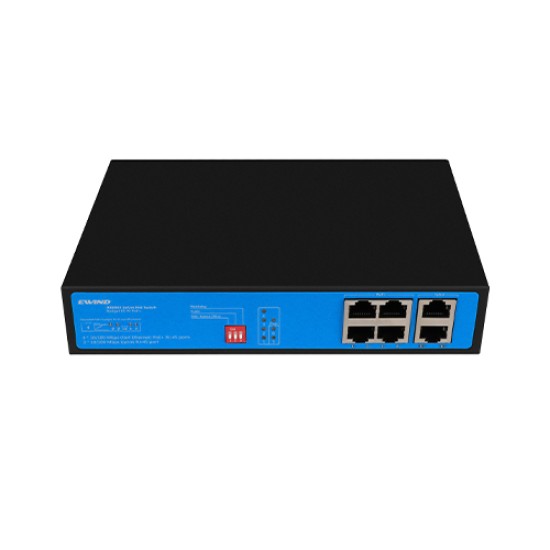

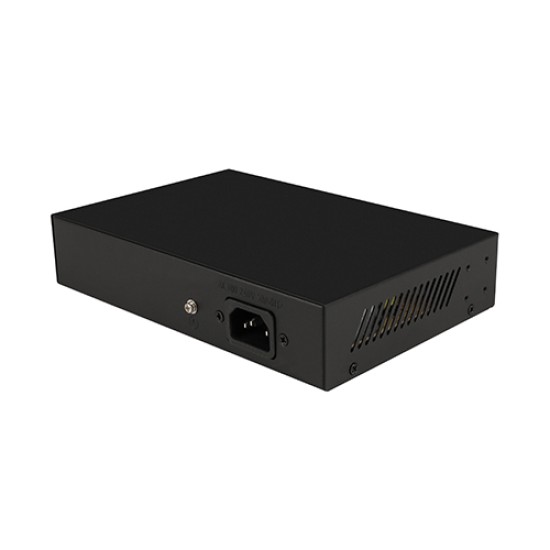

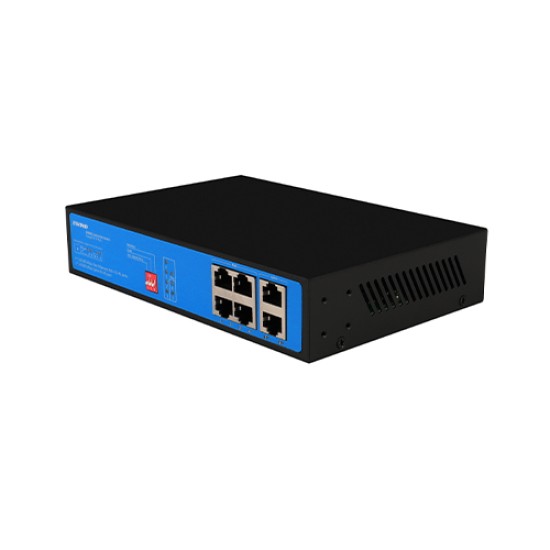

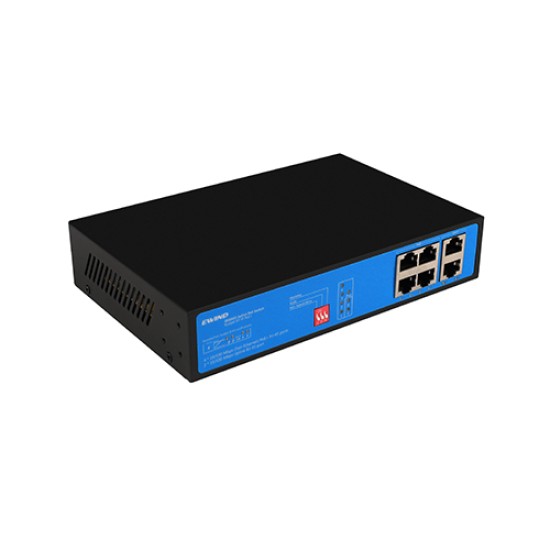

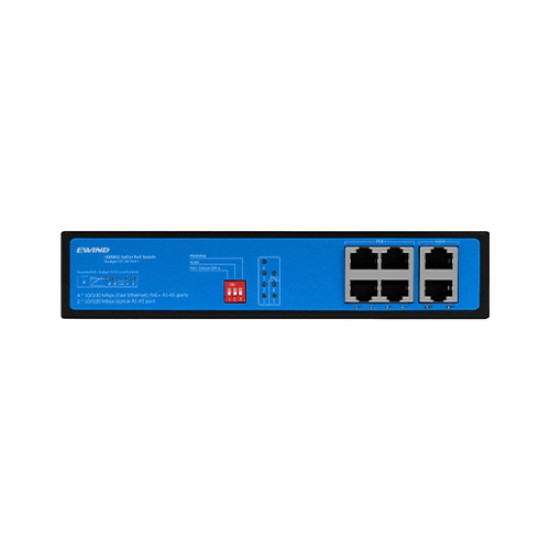

EWIND EW-S1506CF-AP 6 PORTS POE SWITCH WITH BUILD-IN POWER SUPPLY
Image may differ with actual product's structure, color, size & dimensions. No complaint will be accepted for image mismatch.
| Product Price | 3,500৳ |
| Stock Status | In Stock |
| Product ID | 7763 |
| Brand | EWIND |
| Product model | EW-S1506CF-AP |
| Warranty | 2 Years |
EWIND EW-S1506CF-AP 6 PORTS POE SWITCH WITH BUILD-IN POWER SUPPLY
3,500৳
Ex Tax: 3,500৳
হেল্পলাইন নাম্বারে কল দিয়ে পণ্যের স্টক ও ডেলিভারি সিস্টেম সম্পর্কে জেনে নেওয়ার অনুরোধ রইলো, প্রযুক্তি পণ্যের অস্থিতিশীল বাজার পরিস্থিতির কারণে যেকোন সময় মূল্য পরিবর্তন হতে পারে।
Features
- AI Extend 300meters transmission
- PoE Watchdog function
- Support port priority by default
- Auto Speed Change
Specification
| Switch | |
| Advanced Functions | With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale. |
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS |
| Environment | Operation TEMP / Humidity -20~+55°C:5%~90% RH non condensing Storage TEMP / Humidity -40~+75°C;5%~95% RH non condensing |
| Forwarding mode | Store and Forward |
| LEDs | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Green),5-6(Link/Act) (Green), |
| Network Protocol | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x. |
| Power input | Total PWR / Input Voltage 65W (52VAC) |
| Protection | IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV Protection level IP30 |
| Standards | Ethernet Port Feature : 10/100Base–T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive |
| Switching Capacity | 1.2Gbps |
| Transmission distance | Twisted Pair Transmission 10BASE-T: Cat5 UTP (≤300 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) |
| Fixed Port | 4*10/100Base-T/TX PoE ports (Data/Power) 2*10/100Base-T/TX Uplink RJ45 ports (Data) |
| POE Port | Port 1-4 support PoE @ IEEE802.3af/at |
| PoE Standard | IEEE802.3af/at |
| MAC | 2K |
| Buffer Memory | 768K |
| Power Consumption | Power Consumption Standby:<2W; Full load:<60W |
| Installation Method | desktop type, wall mounted |
| Power Supply | Power Supply Pin Default 1/2(+), 3/6(-) MAX / AVERAGE Power Per Port 30W/15.4W Build-in power adaptor AC100~240V 50-60Hz,65W |
| Dimension | 195*130*40mm |
| Weight | <0.8kg / <1.2kg |
| Warranty | 2 Years |
EWIND EW-S1506CF-AP POE SWITCH PRICE IN BD

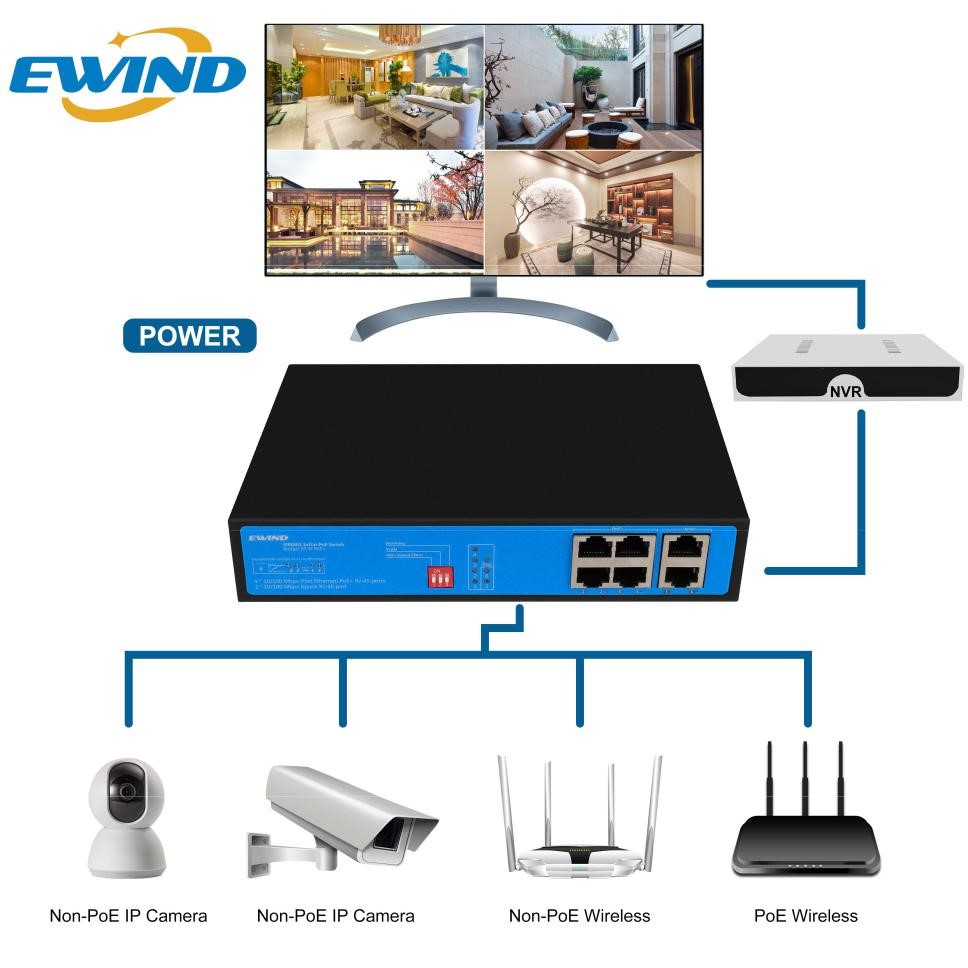

Looking for the best deal on the EWIND EW-S1506CF-AP 6 Ports PoE Switch with a built-in power supply in Bangladesh? Look no further than Quick Link Technology! We offer unbeatable prices on this high-performance PoE switch. The EW-S1506CF-AP series is a reliable and efficient 10/100M unmanaged PoE switch. It features 4 10/100M PoE ports and 2 10/100M uplink RJ45 ports, making it a versatile solution for your networking needs. What sets it apart is its ability to provide IEEE 802.3af/at standard PoE power supply to ports 1-4, with each port delivering a maximum of 30W of power. With a total PoE output power of 60W, it can effortlessly power various PoE terminal devices such as wireless access points, webcams, VoIP phones, and visual intelligent building intercoms through a standard network cable. One of its standout features is its automatic detection and recognition of power-receiving equipment that complies with the standards, ensuring seamless power supply through the network cable. This makes it ideal for environments requiring high-density PoE power, including hotels, campuses, factory dormitories, and small and medium-sized enterprises. With the convenient Dial code switch, you can easily configure port priorities. The switch also supports advanced features, including AI-based 300-meter transmission extension and automatic speed adjustment for single ports (limited to 10Mbps), while maintaining 100M/1000M speeds within 100 meters. Additionally, you can activate port isolation and VLAN support (V) for ports 1-4 or enable AI-PoE Network self-healing mode (D), which automatically resolves camera issues and reduces after-sale concerns. Trust Quick Link Technology for the best prices and top-notch networking solutions. Get your EWIND EW-S1506CF-AP switch today and experience reliable power and performance.
