Product Price | 15,700৳ |
Stock Status | In Stock |
Product ID | 5668 |
Brand | Tenda |
Product model | TEF1126P-24-250W |
Warranty | 1 Year |
General | |
Certification | FCC、CE、RoHS |
Dimensions | 440.0mmx178.8mmx44.0mm |
Environment | Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Power | Input voltage : 100-240V AC 50/60Hz |
Others | PoE budget Single port: AF: 15.4W, AT: 30W Whole device: 230W |
Switch | |
Data transfer rate | 6.55 Mpps |
Intertface | 24 * 10/100 Base-TX Ethernet ports (Data/Power) 2 * 10/100/1000 Base-T Ethernet ports (Data) 1 * 1000 Base-X SFP port (Combo) |
LEDs | 24 * Link/Act LEDs 1 * G1 LED 1 * G2/SFP2 LED 1 * PoE-MAX LED 1 * Power LED |
Mac address | 16K |
Mounting | Desktop mounting: support Wall mounting: support Rack mounting : support |
Protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at |
Switching Capacity | 8.8 Gbps |
Transfer Method | Recommended: CAT5/5e UTP or better Store-and-forward |

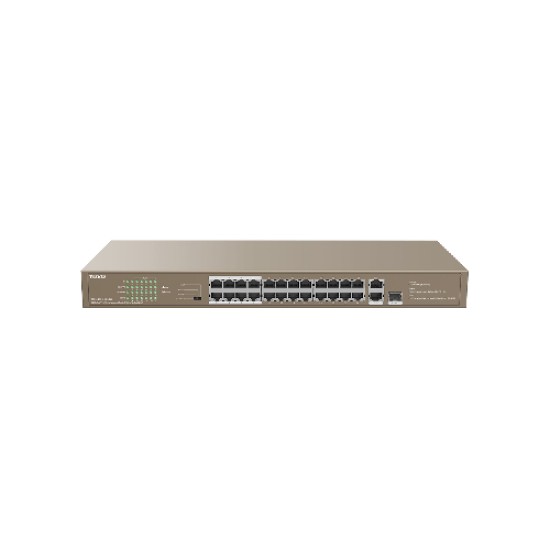

Tenda TEF1126P-24-250W 24FE+2GE/1SFP Rackmount Switch
TEF1126P-24-250W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoEpower output of 230 W, and 30 W for a single port, it can supply power when transmitting data with APs, IPcameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend andVLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wirelessnetworking requirements.
6 kV lightning protection
The switch offers various safety and protection types, including 6 kV lightening protection,PSE short-circuit protection, PoE overload protection, surge current protection etc.
Gigabit uplink port
With one 1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance.
230 W PoE power supply
The switch features 24 IEEE 802.3at/af-compliant RJ45 ports. The entire switch offers amaximum PoE power output of 230 W, and 30 W for a single port, to supply power to anddata transmission with 24 PoE-powered devices such as APs and IP cameras.
One-Key to switch 4 modes
It supports 4 working modes, including standard, priority, extend and VLAN modes. Thehardware DIP mode switch makes networking straightforward and effortless.AF / AF6KV.
